8 meters electricity bus
Length
No. of passengers
Power
Products are subject to the actual vehicles available in the country.
Robust Structure: With reliable and durable vehicle structure, this single-decker bus has a sturdier body and longer service life.
Safety Configuration: Advanced control systems and safety configurations bring a worry-free driving experience.
Fuel-saving Technology: Yutong diesel bus adopts leading fuel-saving technology, meeting the Euro V emission standard and reducing the burden on operation.

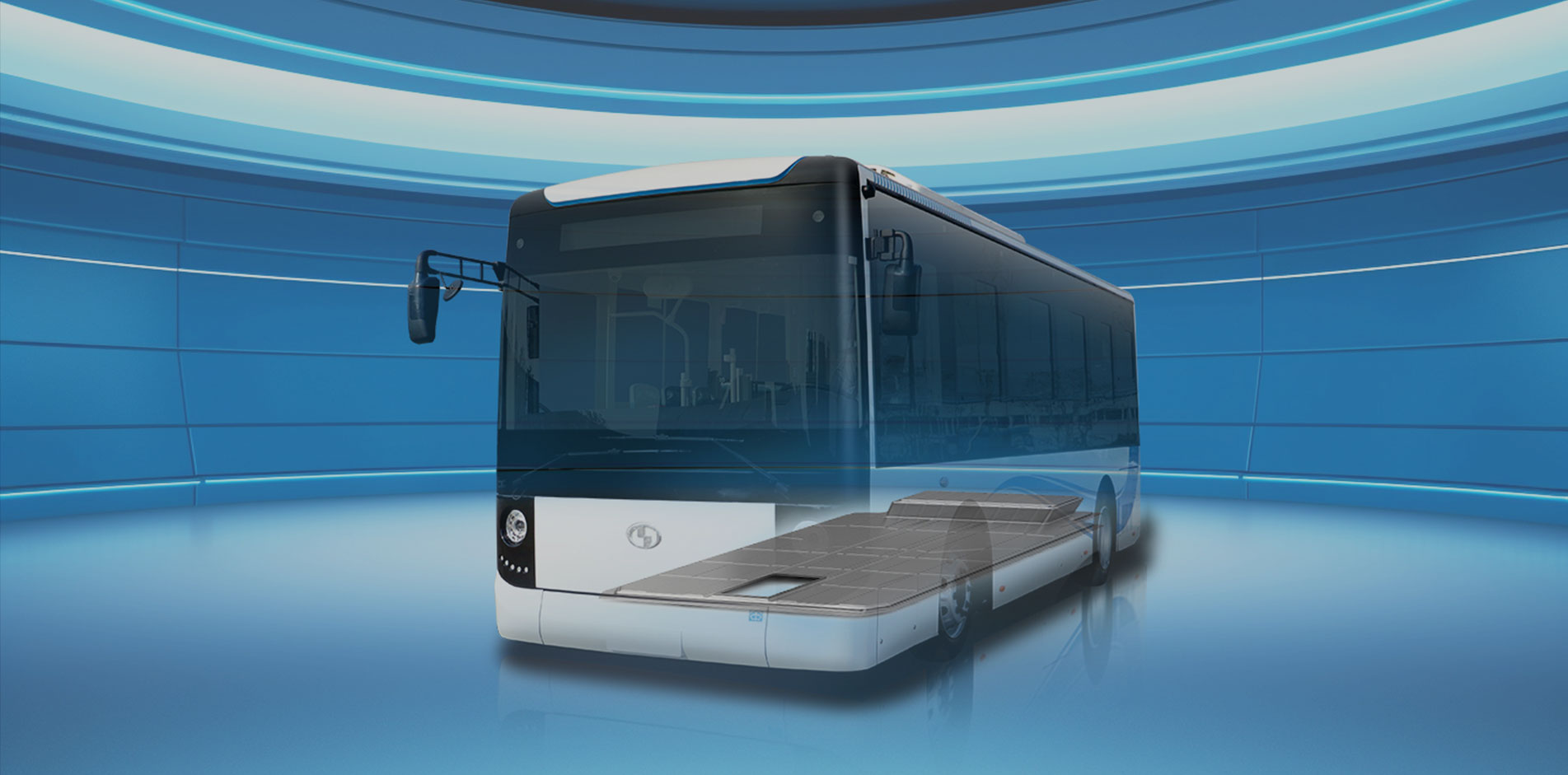

The bus adopts advanced power battery technology and motor control systems, achieving efficient energy utilization, reducing energy consumption and maintenance costs, and saving operating expenses.
The bus utilizes new energy green and low-carbon technology to achieve zero emissions and low noise, reducing carbon emissions, improving urban air quality, and responding to global climate change challenges.
The bus employs advanced power battery technology and motor control systems, achieving efficient energy utilization and reducing operating costs.
| Vehicle parameters |
Body structure |
All-bearing body structure,two footsteps |
Power battery capacity |
179.5kwh |
||||
|
Drive motor mode |
TZ370XS-LKM1702 |
Peak power/speed/torque(kW/r/min/N.m) |
150/3000/1700 |
|||||
|
L*W*H(mm) |
8140*2380*3150/3300 (with AC) |
Approach/departure angle(°) |
8/10 |
|||||
|
Wheel base(mm) |
4200 |
Min. Ground clearance(mm) |
165 |
|||||
|
Front suspension/Rear suspension (mm) |
1940/2000 |
Minimum turning diameter(m) |
≤18 |
|||||
|
Front and rear tracks(mm) |
1980/1815 |
Max speed(km/h) |
69 |
|||||
|
Rated passenger capacity |
60/14-29 |
Max slope of climb(%) |
≥18 |
|||||
|
Curb weigh(kg) |
7760,7950 |
Max gross weigh(kg) |
13400 |
|||||
|
Load capacity of front/rear axle |
5000/8400 |
Cruising range(uniform speed 40km/h) |
≥400 |
|||||
|
Item |
Configuration |
Remark |
||||||
| Chassis configuration |
Cooling system |
Electronic controlled ATS cooling system |
|
|||||
|
Suspension |
Leaf spring 4 front/4 rear Barrel shock absorber
|
|
||||||
|
Axle |
Disk front,drum rear |
|
||||||
|
Brake system |
ABS |
|
||||||
|
Steering system |
Elelectro-hydraulic power steering ball circuit type |
|
||||||
|
Tyre |
255/70R22.5 16PR、Steel rims |
|
||||||
|
TPMS |
Standard equipped |
|
||||||
| Vehicle configuration |
Passenger gate |
Front single-rear double aluminum inner swing door |
|
|||||
|
Seat layout |
1+2 ,22+1 |
|
||||||
|
Floor leather |
Quartz sand with wear proof floor leather |
|
||||||
|
Emergency hammer |
Alarm emergency hammer |
|
||||||
|
Fire extinguisher |
Double 4kg dry powder extinguisher |
|
||||||
|
Curtain |
- |
Selective |
||||||
|
|
AC |
AC with cooling and heating |
|
|||||
Shaolin Bus new energy vehicle management leverages advanced IoT technologies to ensure the efficient operation and maintenance of fleets in electric vehicle solutions.
