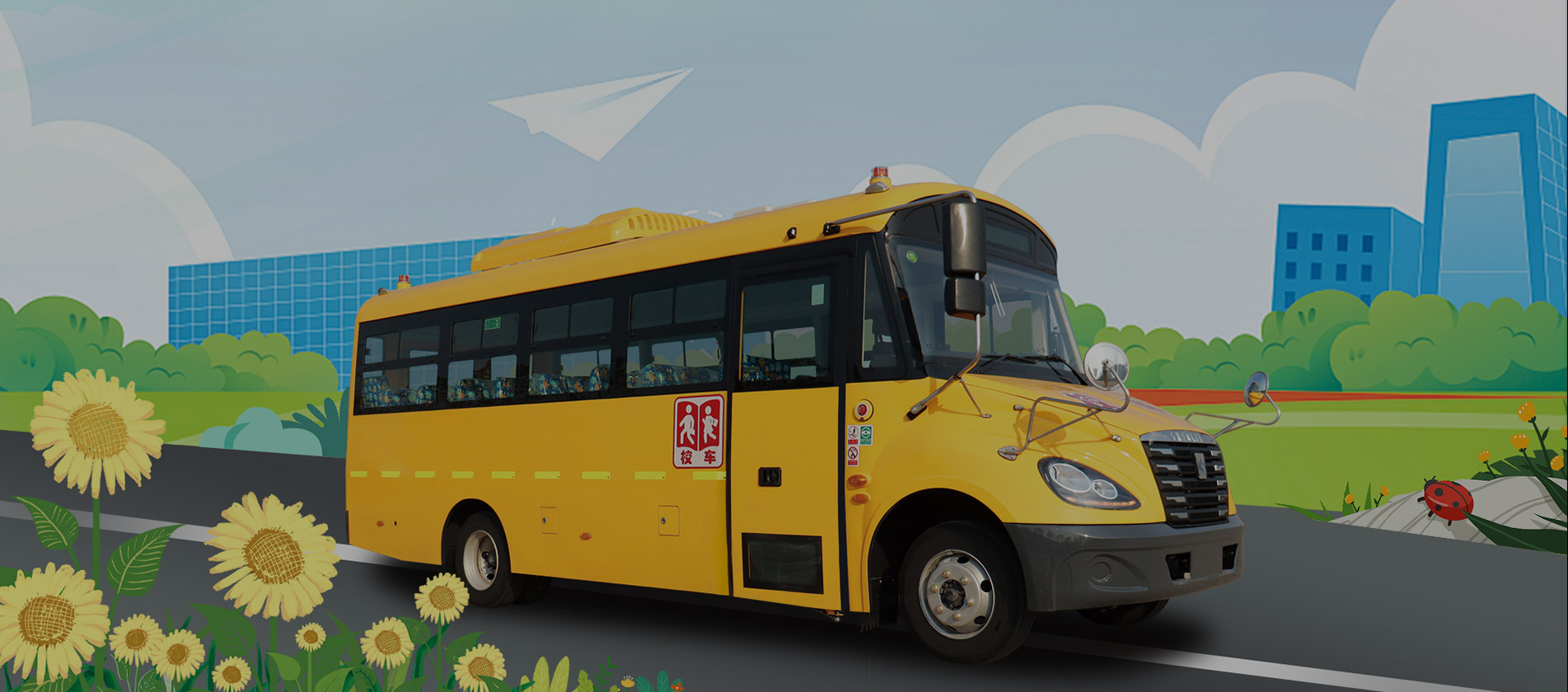

7 meters school bus
Length
No. of passengers
Emission
Products are subject to the actual vehicles available in the country.
Robust Structure: With reliable and durable vehicle structure, this single-decker bus has a sturdier body and longer service life.
Safety Configuration: Advanced control systems and safety configurations bring a worry-free driving experience.
Fuel-saving Technology: Yutong diesel bus adopts leading fuel-saving technology, meeting the Euro V emission standard and reducing the burden on operation.

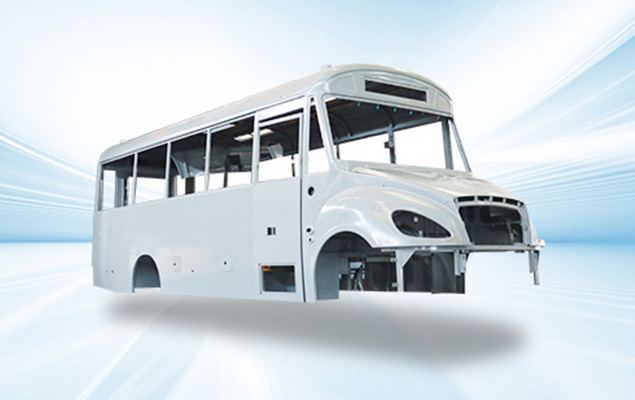

The body is constructed with high-strength steel and utilizes stretch-skin welding technology during manufacturing, significantly improving the body's flatness, rigidity, and sealing, ensuring the bus's durability and sturdiness.

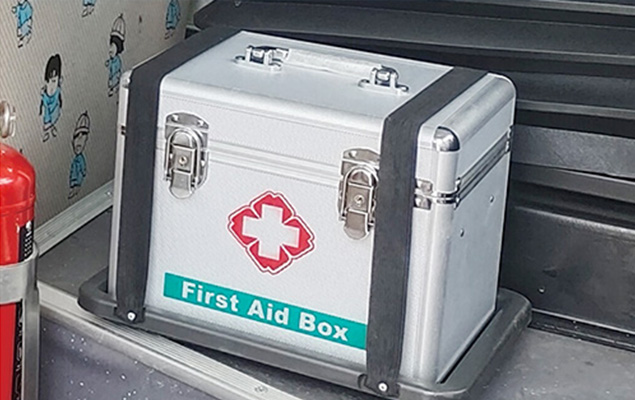

Equipped with advanced tire pressure monitoring, an intelligent fire extinguishing system, a first aid kit, and child safety seats to ensure maximum passenger protection in emergencies.

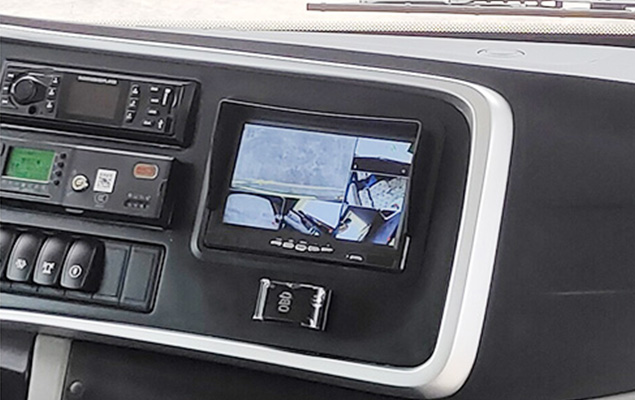

The bus is equipped with a driving recorder and high-definition interior and exterior cameras, providing real-time monitoring of the vehicle's operating status and supporting safe operations with data.
|
Item |
No. |
specification |
Parameter model |
No. |
specification |
Parameter model |
|
Whole vehicle parameters |
1 |
L*W*H(mm) |
7430*2280*2910/3090(AC) |
2 |
Max gross weigh(kg) |
7500 |
|
3 |
Wheel base(mm) |
4300 |
4 |
Approach/departure angle(°) |
23/12 |
|
|
5 |
Front and rear tracks(mm) |
1810/1670 |
6 |
Emission standard |
China Ⅵ |
|
|
7 |
Front suspension/Rear suspension (mm) |
980/2150 |
8 |
Rated passenger capacity |
child41/38+2+1、schoolchild36/34+1+1 |
|
|
9 |
Max speed(km/h) |
80 |
10 |
Curb weigh(kg) |
5060/5170(AC） |
|
|
Chassis base configuration |
1 |
Engine Manufacture |
Yuchai |
2 |
Engine Manufacturer |
YCY24140-60 |
|
3 |
Displacement (L) |
2.36 |
4 |
Gearbox Type | Fast five-speed gearbox | |
|
5 |
Rated power(kW) |
103 |
6 |
Front/rear axle maximum load |
2.5T/5T |
|
|
7 |
dynamo |
28V/120A |
8 |
Radiator type |
Aluminum water tank |
|
|
9 |
Front axle form |
Forged steel parts, I-shaped sections, fist type at both ends |
10 |
Rear axle form |
Integral stamping and welding |
|
|
11 |
Front suspension type |
9 leaf springs, shock absorbers, stabilizers |
12 |
Steering type |
Hydraulically assisted |
|
|
13 |
Rear suspension type |
11 leaf springs, shock absorbers |
14 |
Front brake type |
Disc, 16 inches |
|
|
15 |
Brake type |
Pneumatic braking |
16 |
Parking brake syste |
Spring-loaded energy storage |
|
|
17 |
Rear brake type |
Drum type, φ310×160 |
18 |
ABS anti-lock braking |
disposition |
|
|
19 |
Puncture emergency device |
Front wheel configuration |
20 |
Automatic gap adjustment arm |
disposition |
|
|
21 |
Tire model |
215/75R17.5LT |
22 |
Fuel Tank Capacity (L) |
90 |
|
|
Electrical configuration |
1 |
Defroster |
Plumbing defrosting + heating of the driver's feet |
2 |
appearance |
LCD meter |
|
3 |
Vehicle communication |
CAN communication |
4 |
Dash cam |
LCD meter |
|
|
5 |
Audio-visual system |
Receiver |
6 |
Monitoring screen, monitoring probe |
Configure 6-channel video surveillance |
|
|
7 |
Patrol system |
disposition |
8 |
USB interface |
disposition |
|
|
9 |
Special marker lights for school buses |
4 pcs |
10 |
Electronic clocks |
disposition |
|
|
Basic body configuration |
1 |
skylight |
900B Safety Top Window (with Ventilation Fan) |
2 |
Side window type |
Built-in side sliding windows |
|
3 |
Exterior mirror type |
Left short right long bracket type, front lower view mirror |
4 |
Passenger door type |
Aluminum alloy pneumatic swing door |
|
|
5 |
Seat belt unfastened reminder |
Main driver |
6 |
Type of main driver's seat belt |
Three-point formula |
|
|
7 |
Floor type |
Flat floor |
8 |
Occupant seat belts |
Two-point |
|
|
9 |
Instrument panel |
Polyurethane foam molding |
10 |
Main driver's seat type |
Six-way adjustment, mechanical vibration damping |
|
|
11 |

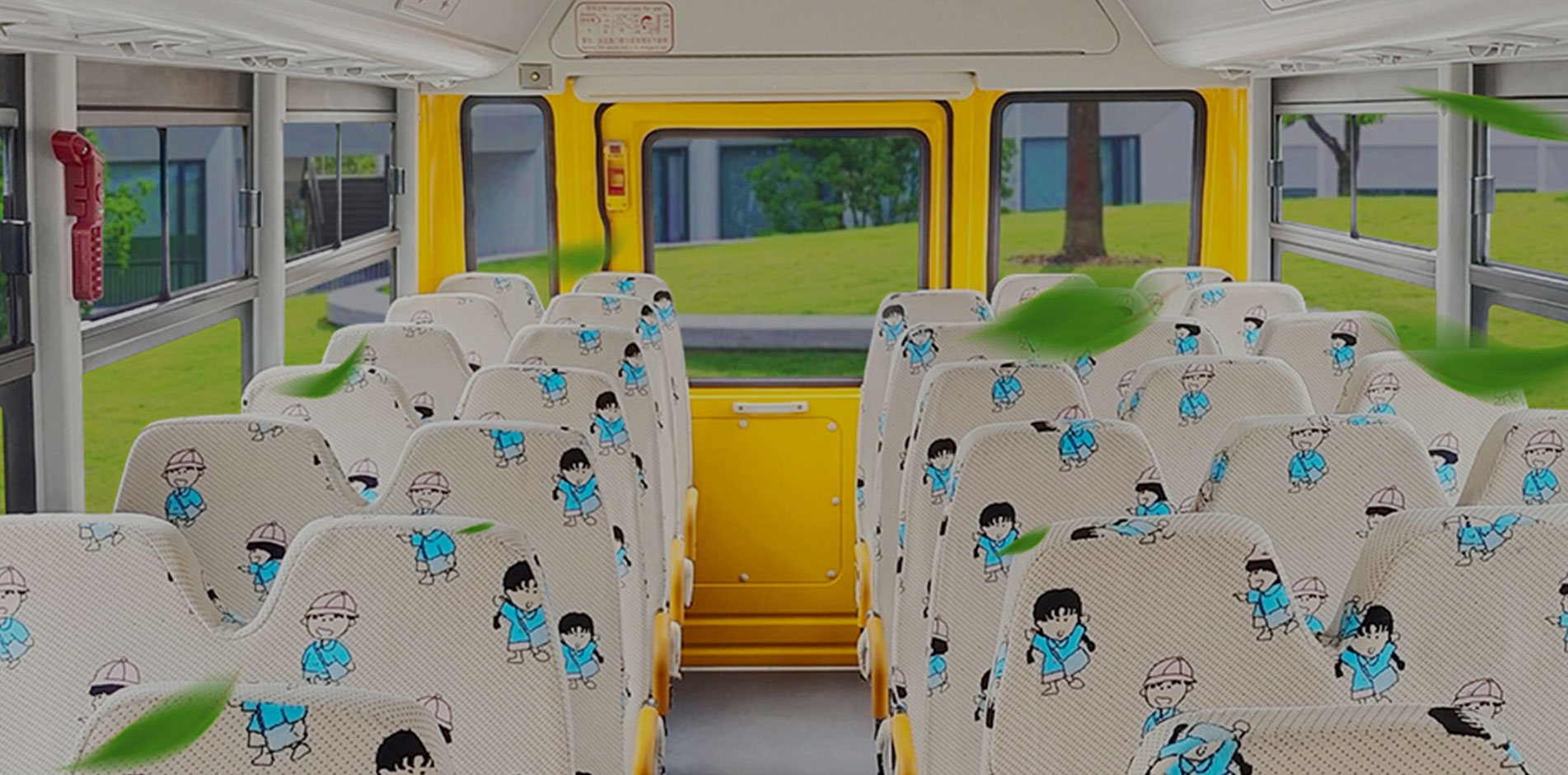

Passenger seat |
Seats for toddlers and elementary school students |
12 |
Flooring material |
Bamboo glue flooring + floor leather |
|
|
13 |
Seating arrangement |
3+2 |
14 |
Driver shade |
Front sunshades |
|
|
15 |
guardrail |
Occupant soft partitions |
16 |
emergency exit |
Rear emergency door |
|
|
17 |
Hatch |
Battery hatch |
18 |
Top upholstery |
ABS molded interior + PVC air duct |
|
|
Livery |
|
Topcoat material |
School buses are painted yellow |
|
|
|
|
other |
1 |
Fire extinguisher in the car |
2 x 2kg |
2 |
Automatic fire extinguishing in the engine compartment |
disposition |
|
3 |
On-board tools |
disposition |
4 |
Wheel mask |
2 |
|
|
5 |
Warning triangle |
disposition |
6 |
Reflective vests |
disposition |
|
|
7 |
spare wheel |
配disposition |
8 |
medicine cabinet |
disposition |
|
|
9 |
Electric parking indication arm |
disposition |
10 |
-- |
-- |
|
|
Optional |
1 |
Independent plumbing |
Optional |
2 |
Front/rear LED electronic street signs |
Optional |
|
3 |
Overhead air conditioning |
Optional |
4 |
Passenger curtains |
Optional |
|
|
5 |
Residual hot water warms |
Optional |
6 |
Full tire pressure monitoring |
Optional |
|
|
7 |
Imported air-conditioning compressor |
Optional |
8 |
medicine cabinet |
Optional |
|
|
9 |
Copper water tank |
Optional |
10 |
Daytime running lights |
Optional |
