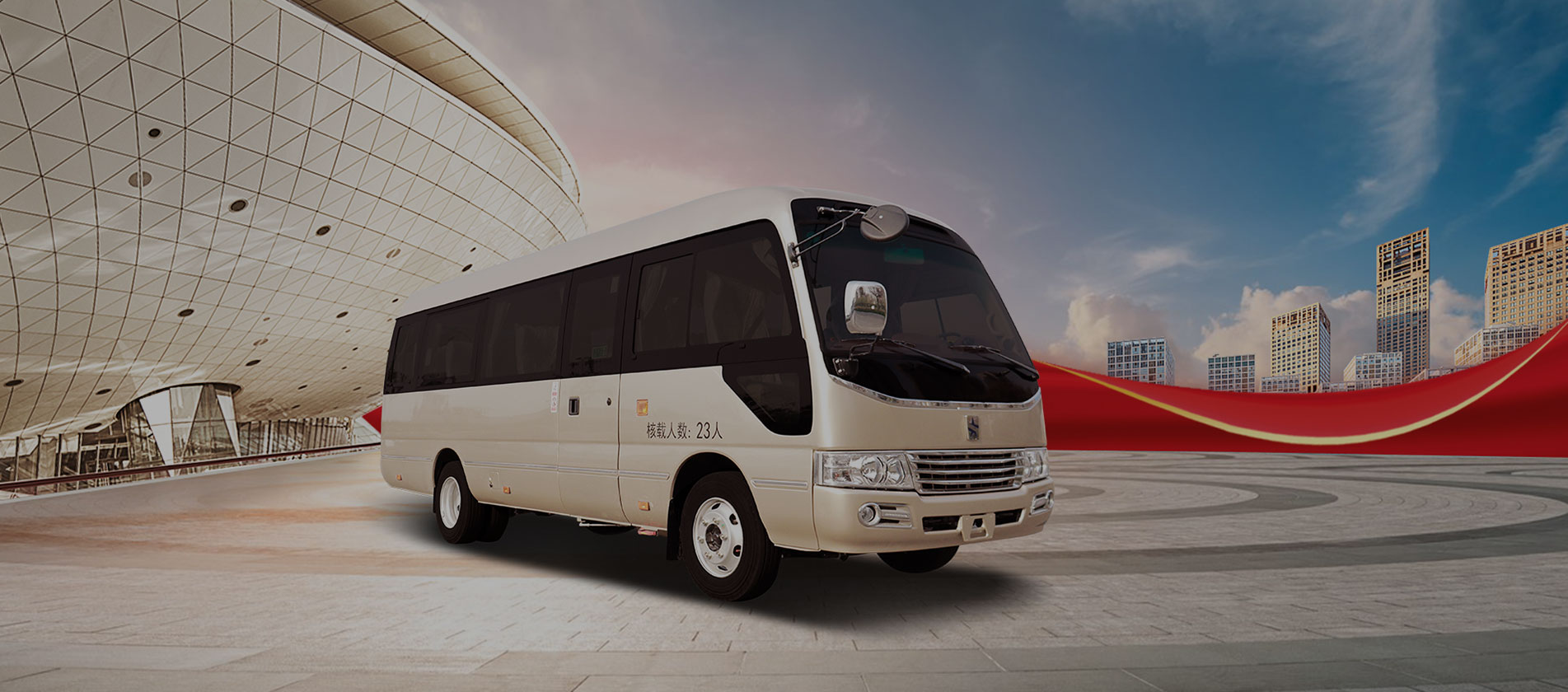

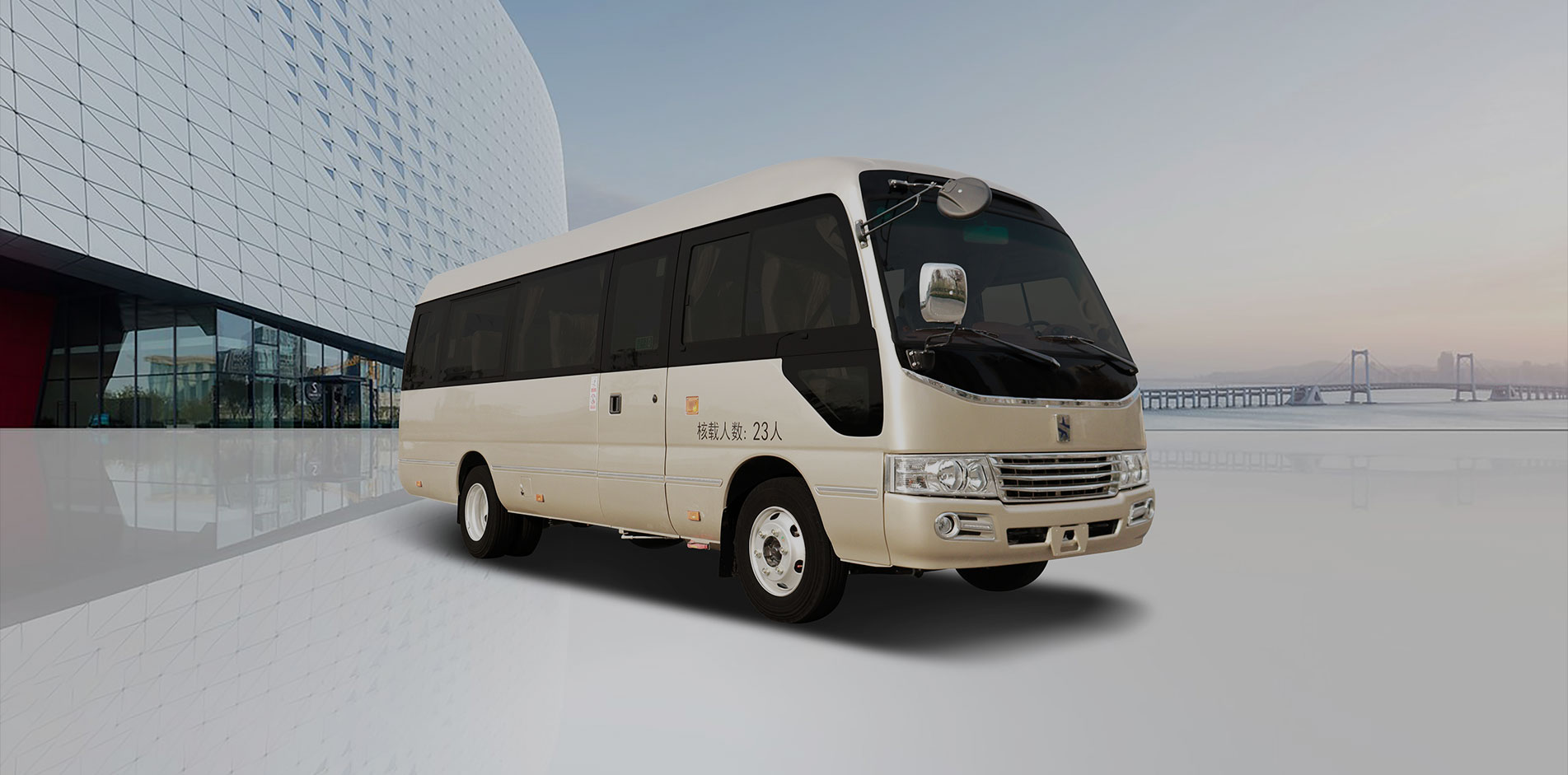

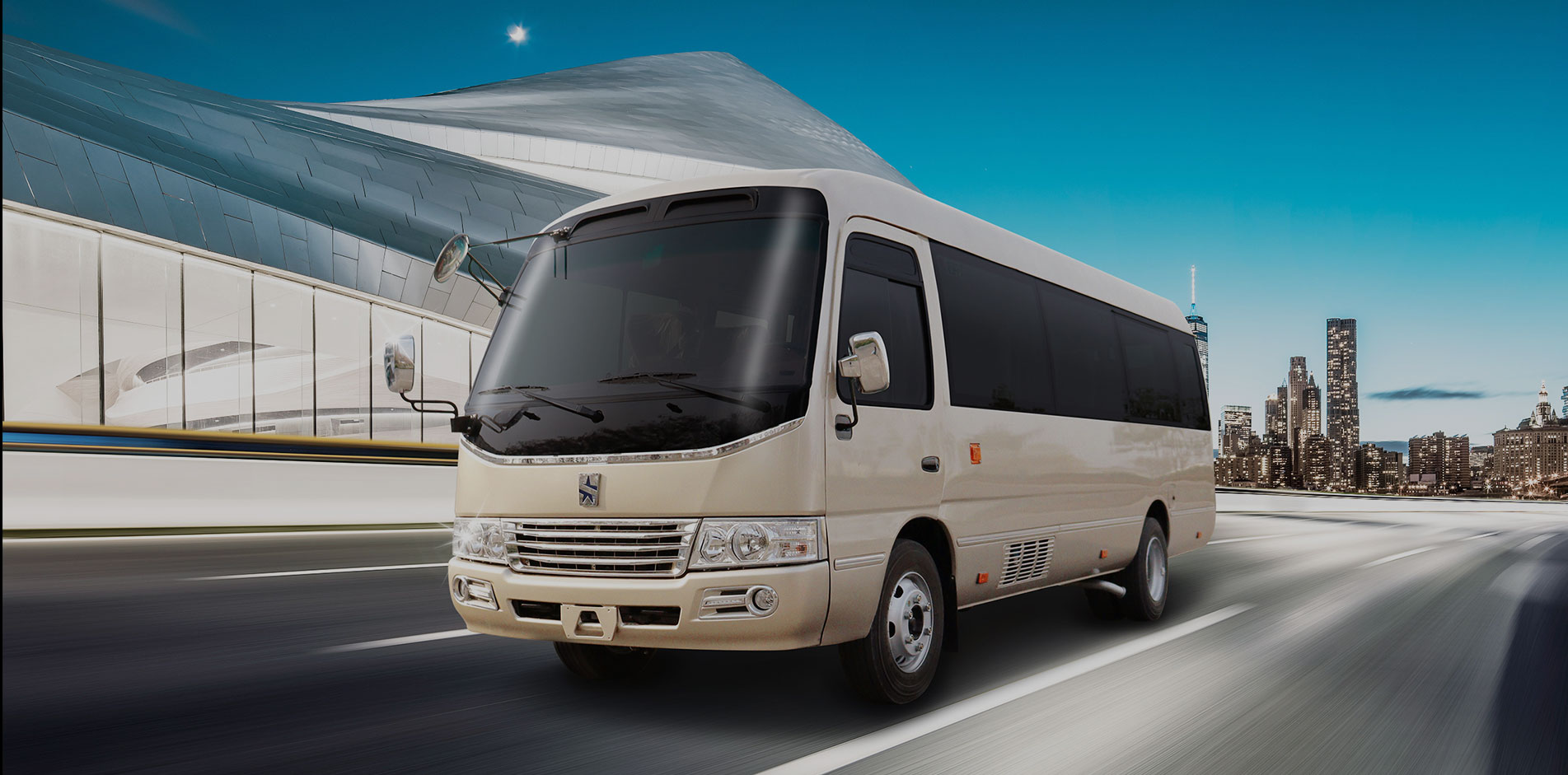

7.2 meters diesel bus
Length
No. of passengers
Emission
Products are subject to the actual vehicles available in the country.
Robust Structure: With reliable and durable vehicle structure, this single-decker bus has a sturdier body and longer service life.
Safety Configuration: Advanced control systems and safety configurations bring a worry-free driving experience.
Fuel-saving Technology: Yutong diesel bus adopts leading fuel-saving technology, meeting the Euro V emission standard and reducing the burden on operation.
The vehicle design and manufacturing process emphasize safety performance improvements. From CAE analysis to rigorous safety testing, the vehicle ensures safety and stability under various road conditions. It is also equipped with safety features such as a rearview camera, parking radar, and tire pressure monitoring to ensure driving safety.
Comprehensive after-sales services are provided, including dedicated customer service managers, VIP service channels, and 24/7 "premium" support, ensuring a worry-free after-sales experience for users.
|
Item |
No. |
Specification |
Technical Parameter |
No. |
Specification |
Technical Parameter |
|
Vehicle specification |
1 |
L*W*H(mm) |
7145×2050×2740、2850 |
8 |
Max gross weigh(kg) |
6800 |
|
2 |
Wheel base(mm) |
3935 |
9 |
Approach/departure angle(°) |
16/11 |
|
|
3 |
Front and rear tracks(mm) |
1700/1560 |
10 |
Ramp angle（°） |
≥10 |
|
|
4 |
Front suspension/Rear suspension (mm) |
1150/2060 |
11 |
Min. Ground clearance(mm) |
150 |
|
|
5 |
Max slope of climb(%) |
≥30 |
12 |
Emission standard |
China ⅥB |
|
|
6 |
Rated passenger capacity |
10-23 |
13 |
Parking brake system |
Spring actuated |
|
|
7 |
Curb weigh(kg) |
4450、4720 |
14 |
ESC |
Standard equipped |
|
|
Chassis parameters and configuration |
1 |
Chasis Mode |
SLG6690S6 |
9 |
Tyre |
215/75R17.5 16PR |
|
2 |
Engine |
YCY30150-60A |
10 |
Front/Rear suspension |
3/4 leaf springs，shock-absorbers， stabilizer bar |
|
|
3 |
Air intake type |
Turbo charger Charge air cooler |
11 |
Steering system |
Hydraulic power steering |
|
|
4 |
Rated power（kw） |
110 |
12 |
Brake system |
Air pressure braking+exhaust brake |
|
|
5 |
Peak torque (N·m) |
380 |
13 |
Service brake |
Disk brake front and rear |
|
|
6 |
Gear Number |
6 speed manual transmission |
14 |
ABS |
Standard equipped |
|
|
7 |
maximum load front/rear |
2.5T/4.5T |
15 |
Front TPMS |
Standard equipped |
|
|
8 |
Key |
Remote key |
16 |
Traction control （ASR/TCS/TRC etc.） |
Standard equipped |
|
|
Main body configuration |
1 |
Exterior rearview mirror type |
Simple stand type |
13 |

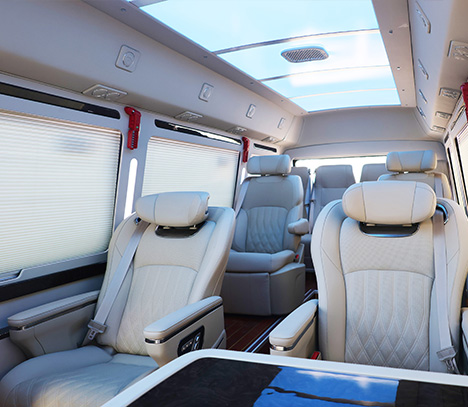

sunroof |
Hinged sunroof(With electric fan) |
|
2 |
Driver seat adjustment |
Four-way manual adjustment for front, rear and backrest |
14 |
Power pickup port |
1 |
|
|
3 |

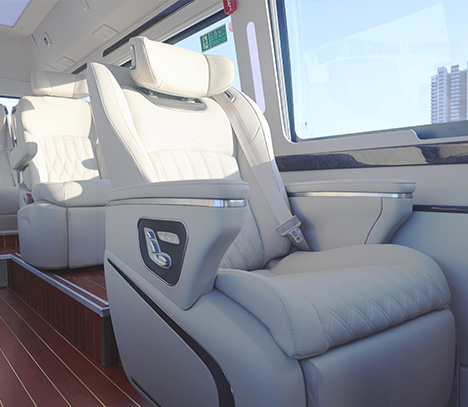

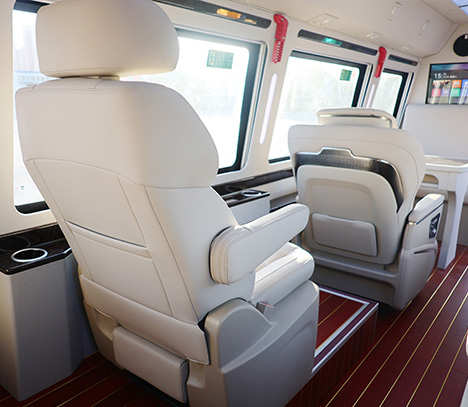

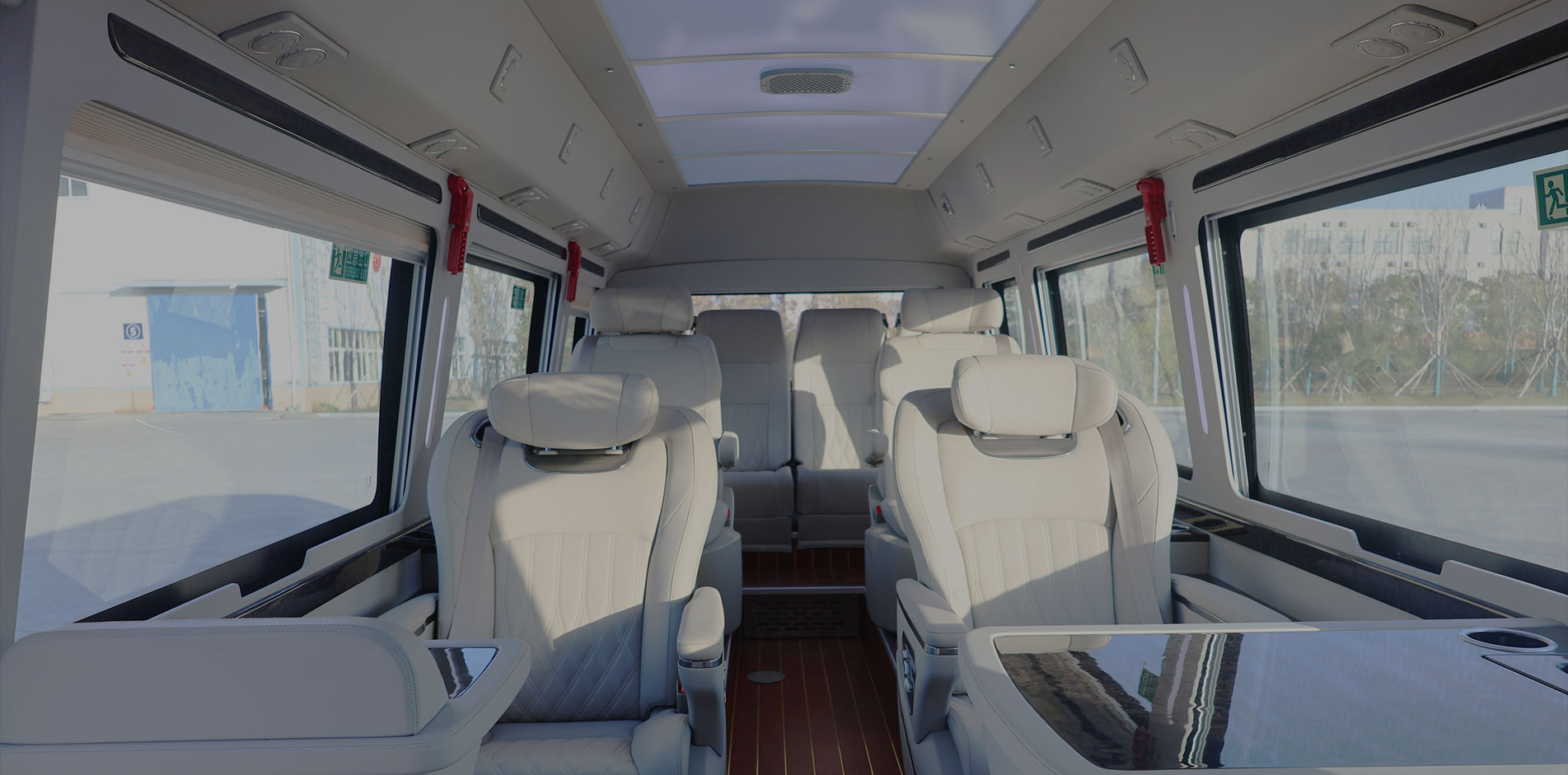

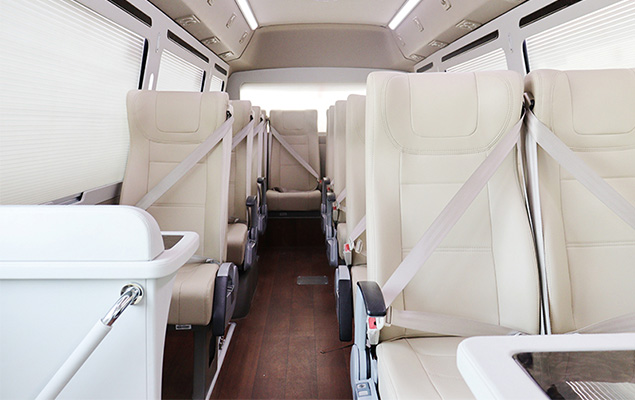

Passenger Seats |
Leather, adjustable backrest. |
15 |
Seat Belt Reminder |
Driver, passenger (3-point) |
|
|
4 |
Side window type |
Sealed windows + outward sliding emergency windows + inward sliding windows (F green) |
16 |
Built-in air conditioner (PVC+PU foam duct) |
Standard equipped |
|
|
5 |
Driver sunshade |
sunshade |
17 |
Defrosters |
Standard equipped |
|
|
6 |
luggage rack inside car |
Left luggage rack |
18 |
Car recorder with monitoring all-in-one system |
Monitor the outside front of the vehicle, monitor the driver, monitor the entire vehicle, monitor the passenger door (including LCD screen) |
|
|
7 |
Rear luggage compartment type |
Straight beam trunk (with restraints) |
19 |
audiovisual system |
Recorder + Microphone |
|
|
8 |
Floor |
Bamboo vinyl flooring + floor leather |
20 |

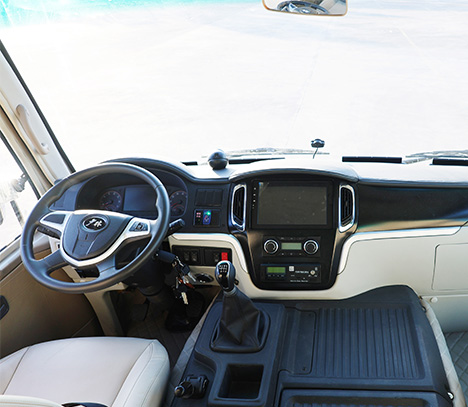

meter |
liquid crystal meter |
|
|
9 |
Passenger door
|
Electric Swing Door |
21 |
Wheel masker
|
2 |
|
|
10 |
front fog lights |
Standard equipped |
22 |
Headlights turn on automatically |
Standard equipped |
|
|
11 |
LED daytime running lights |
Standard equipped |
23 |
fire extinguishers |
2set with 2kg/set |
|
|
12 |
LED High Brake Light |
optional |
24 |
Types of Paint |
plain paint |
