SLG6580XC6Z

Item

NO.

specification

Technical parameter Model

sequence number

specification

Technical parameter

Vehicle Parameters

1

)L*W*H(mm)

5845×1950×2735

2

Curb weigh(kg)

5510

3

Wheelbase(mm)

3300

4

Approach/departure angle(°)

23/13

5

Front and rear tracks(mm)

1610/1430

6

Emission level

China Ⅵ

7

Front suspension/Rear suspension (mm)

1000/1545

8

Rated passenger capacity

17+1+1

9

Maximum speed(km/h)

80

10

Curb Weight(kg)

3550/3750

Chassis configuration

1

Engine Manufacturer

Yuchai

2

Engine Manufacturer

YCY24120-60

3

Rated power（kW）

88

4

Gear box

手动五档 5 speed manual

5

generator

28V/100A

6

Front axle and rear axle maximum load

2T、3.6T

7

Front axle form

Forged steel parts, I-shaped section, both ends of the fist

8

tire model

215/75R16LT

9

Rear axle form

energy storage welding

10

steering type

hydraulic power

11

suspension

Leaf springs，shock-absorbers，front  stabilizer bar

12

Front Brake System

Disk, 16 inches

13

Brake type

air brake

14

Parking Brake Type

Spring actuated brake

15

Rear Brake System

Drunm/φ310×100

16

ABS

Standard equipped

17

Tire burst emergency device

Front Tyre

18

Automatic gap adjusting arm

Standard equipped

Appliance configuration

1

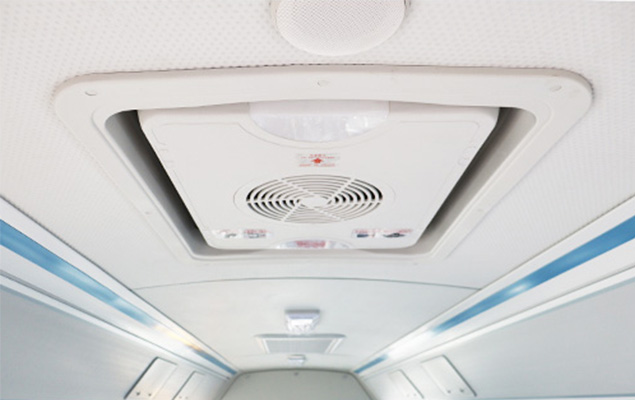

AC

Standard equipped

2

defroster

Standard Equipped

3

Vehicle communication

CAN

4

instrument

LCD instrument

5

Battery

2*12V/120AH

6

data recorder

Standard Equipped

7

audio and video system

radio and tape player

8

security display

Standard Equipped

9

CCTV

6

10

USB Number

1

11

Lights for school buses

4 protective net

USB

Standard Equipped

Body configuration

1

Sky Window

Standard Equipped

2

Side window type

Built-in sliding window

3

Seat belt not fastened reminder

Driver seat

4

Passenger door type

Pneumatic folding door

5

6

driver seat belt type

Three-point

7

Floor type

leveller plate

8

seat belt for passenger

two point

9

dashboard

Polyurethane foam

10

Main seat type

Mechanical, front and back Angle adjustment

11

roof trimming

ABS+PVC air duct

12

floor

Bamboo rubber floor + floor leather

13

guard bar

Occupant soft partition

14

Driver shade

Front sunshade

15

cabin door

Battery hatch door

16

safety door

Rear emergency door

Finish material

School bus color paint

Paint scheme

--

--

other

1

fire extinguisher

2kg

2

Engine compartment automatic fire extinguishing device

Standard equipped

3

tool box

Standard equipped

4

Wheel stopper

2

5

Warning triangle

Standard equipped

6

traffic vest

Standard equipped

7

spare tyre

Standard equipped

8

medical box

Standard equipped

9

Electric parking indicator arm

Standard equipped

Optional configuration

1

Driver seat (front and rear, height, gravity adjustment, backrest Angle adjustment, driver armrest)

Optional combinations are available

2

Built-in sliding window + enclosed glass

Selective

3

Selective

4

28V/70A

Selective

5

Waste heat water heating

Selective

6

No air conditioning

Selective

7

Independent water heating

Selective

8

Passenger curtain

Selective

9

Front LED electronic street sign

Selective

10

electronic clock

Selective

11

Irony

Selective
