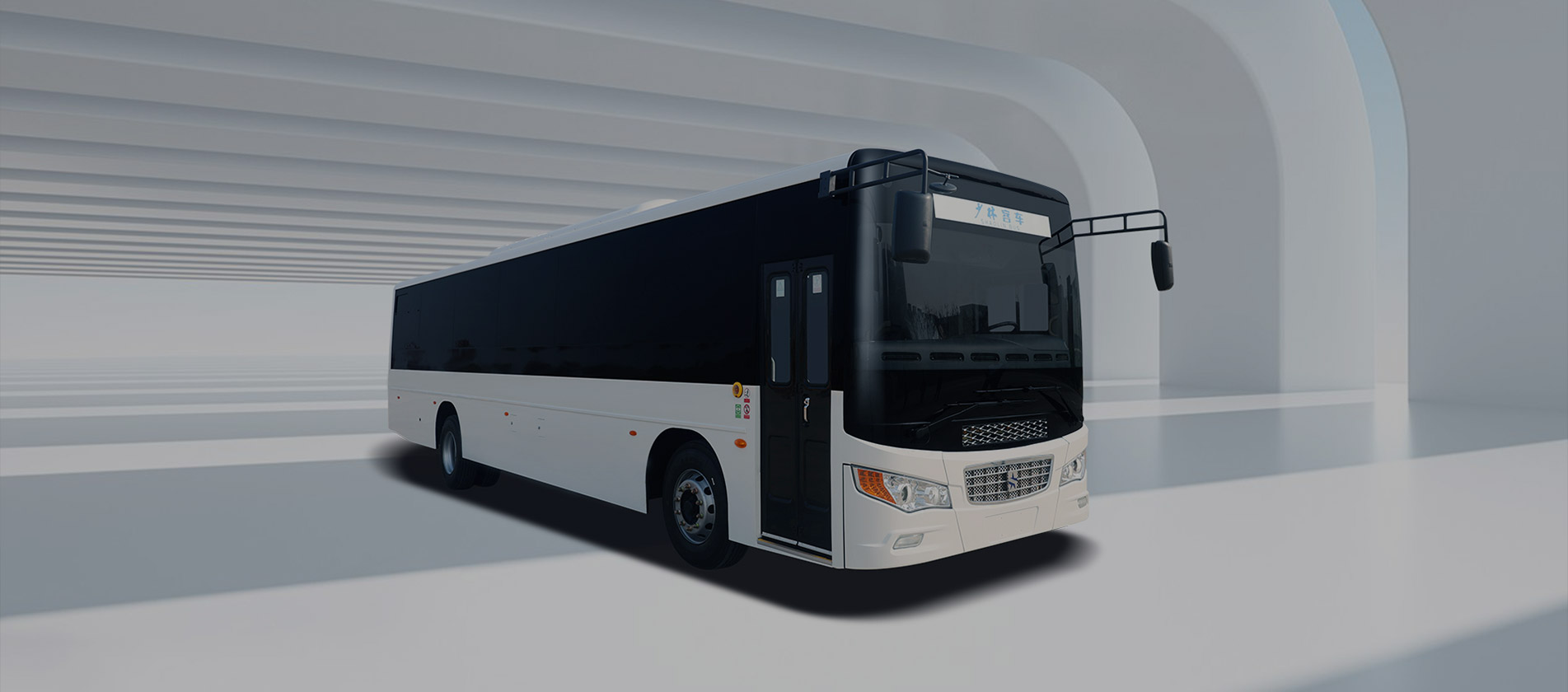

12 meters diesel bus
Length
No. of passengers
Emission
Products are subject to the actual vehicles available in the country.
Robust Structure: With reliable and durable vehicle structure, this single-decker bus has a sturdier body and longer service life.
Safety Configuration: Advanced control systems and safety configurations bring a worry-free driving experience.
Fuel-saving Technology: Yutong diesel bus adopts leading fuel-saving technology, meeting the Euro V emission standard and reducing the burden on operation.

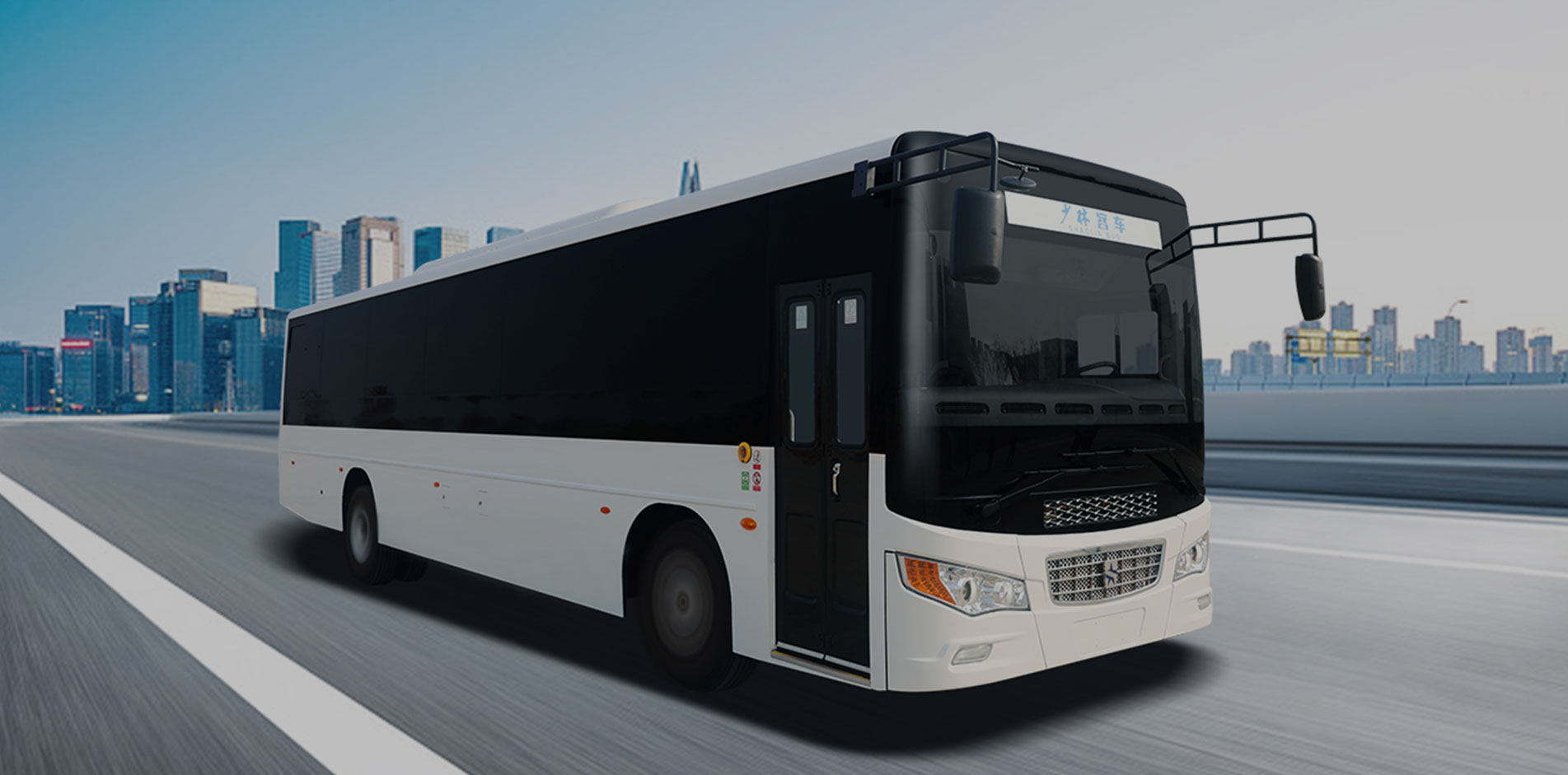

Featuring a streamlined design with smooth lines and a stylish, elegant appearance. The body color is customizable to meet customer requirements.

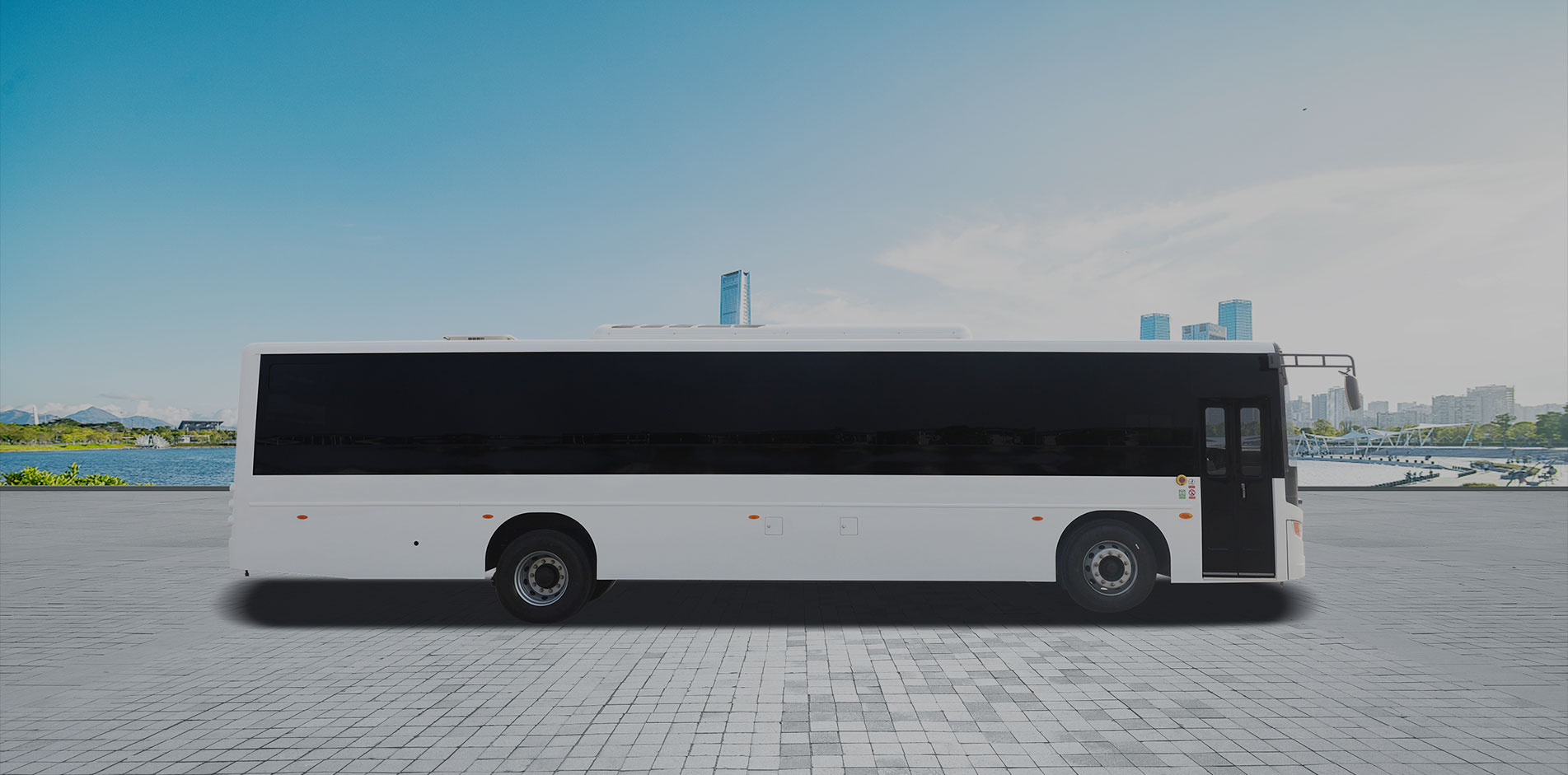

The bus has large windows that provide abundant natural light, complemented by a well-designed interior lighting system to ensure a comfortable riding environment at night or in low-light conditions.
Equipped with a high-performance engine and transmission system, delivering strong power output and smooth acceleration. The vehicle incorporates advanced energy-saving technologies to reduce fuel consumption.
|
No |
Description |
|
remark |
|
1 |
Sales Market |
Middle East, The tropics |
|
|
2 |
Vehicle type |
For Labour |
|
|
3 |
Driver's position |
Left rudder |
|
|
4 |
Type of energy |
diesel fuel |
|
|
5 |
Emission standards |
Euro IV |
|
|
Basic parameters |
|||
|
6 |
Body structure |
Non-load-bearing |
|
|
7 |
L |
11980 |
|
|
8 |
W |
2540 |
|
|
9 |
H |
3385（AC） |
|
|
10 |
Wheelbase (mm) |
6200 |
|
|
11 |
Front track(mm) |
2040 |
|
|
12 |
Rear track(mm) |
1860 |
|
|
13 |
Front/rear overhang(mm) |
2200/3580 |
|
|
14 |
Number of passengers |
65 |
|
|
15 |

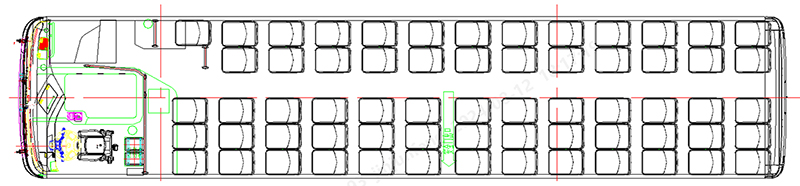

Seat layout diagram |
|
|
|
16 |
Curb weight (kg) |
9050（4050/5000） |
|
|
17 |
Maximum total mass (kg) |
14500（5500/9000） |
|
|
18 |
Angle of approach/departure (°) |
10/11 |
|
|
19 |
Longitudinal passing angle (°) |
≥16 |
|
|
20 |
Minimum ground clearance (mm) |
≥190 |
|
|
21 |
Drive type |
Front and rear wheel drive |
|
|
22 |
Body Special Needs 2 |
Such as safe escape exits, batteries, switches, water tank covers, fuel tank caps, high temperature positions, etc., and warnings must be written in Arabic and English |
|
|
23 |
Engine compartment fire extinguisher |
Columnar, ultra-fine dry powder automatic fire extinguisher |
|
|
24 |
Body special needs 6 |
Engine emergency stop button, disposable engine shutdown device |
|
|
engine |
|||
|
25 |
engine manufacturers |
Yuchai |
Desert air filter |
|
26 |
Engine model |
YC6J220-42 |
|
|
27 |
Displacement (L) |
6.49 |
|
|
28 |
Air intake type |
Turbocharged |
|
|
29 |
Rated power(kw) |
162 |
|
|
30 |
Peak torque(N·m) |
800 |
|
|
31 |
Fuel Tank Volume(L) |
400 |
|
|
transmission |
|||
|
32 |
Gearbox type |
|
|
|
33 |
Transmission manufacturers |
FAST |
|
|
34 |
Transmission model |
6DS95T |
|
|
35 |
Number of gears |
6 |
|
|
36 |
Gear ratios |
5.92,3.33,2.06,1.36,1,0.76,R5.41 |
|
|
37 |
Gear shifting method |
|
|
|
Driving system |
|||
|
38 |
Frame form |
Straight longitudinal members riveted frame |
|
|
39 |
Front axle form |
I-beams |
|
|
40 |
Maximum load on the front axle |
5.5T |
|
|
41 |
Rear axle form |
Stamping and welding of bridge housings |
|
|
42 |
Maximum load on the rear axle |
10T |
|
|
43 |
Rear axle final reduction ratio |
5.89 |
|
|
44 |
Automatic gap adjustment arm |
Yes |
|
|
45 |
Tire model |
11R22.5-16PR |
|
|
46 |
Wheel material |
steel |
Stainless steel wheel covers are required |
|
47 |
Spare tire specifications |
Full size |
|
|
48 |
Front suspension type |
Non-independent suspension |
|
|
49 |
Front suspension type |
11 multi-leaf springs, shock absorbers |
Equipped with a balance bar |
|
50 |
Rear suspension type |
Non-independent suspension |
|
|
51 |
Rear suspension type |
12 multi-leaf springs, shock absorbers |
Equipped with a balance bar |
|
52 |
Steering type |
Recirculating ball steering, hydraulic power assist |
|
|
Wheel braking |
|||
|
53 |
Brake type |
Pneumatic braking |
|
|
54 |
Exhaust assisted braking |
disposition |
|
|
55 |
Front brake type |
Drum pose |
|
|
56 |
Rear brake type |
Drum pose |
|
|
57 |
Parking vehicle type |
Energy storage spring type |
|
|
Passive safety |
|||
|
58 |
Type of driver's seat belt |
Three-point formula |
|
|
59 |
Driver seatbelt is not wearing a reminder |
disposition |
|
|
60 |
Occupant seat belt type |
Two-point seat belts |
|
|
61 |
ABS anti-lock braking system |
disposition |
|
|
Exterior lights |
|||
|
62 |
Front fog lights |
disposition |
|
|
63 |
High-mounted brake light |
disposition |
|
|
Windows & Doors |
|||
|
64 |
Sunroof type |
Basic safety exit function |
|
|
65 |
Side window type |
Closed glass + rear window with built-in sliding window |
|
|
66 |
Window glass color |
Dark grey glass with ≤ light transmittance of 12% |
|
|
67 |
Passenger door type |
Front single pneumatic folding door |
With anti-pinch function; 1. When the door is opened, there should be handles on both sides of the door; 2. There must be handrails near the doors on both sides of the door |
|
68 |
Driver's door |
disposition |
|
|
69 |
emergency exit |
disposition |
|
|
Rearview mirrors |
|||
|
70 |
Exterior mirror type |
Left length and right length bracket type |
|
|
71 |
Exterior mirror adjustment |
Manual |
|
|
Electronic Equipment |
|||
|
72 |
Generator specifications |
150A+150A |
|
|
73 |
Sceen panel |
|
|
|
74 |
Vehicle communication |
CAN |
|
|
75 |
Dash cam |
The power harness is reserved |
|
|
76 |
accumulator |
|
Chassis straps |
|
77 |
Safety hammer |
|
|
|
78 |
Special needs of instrument panels |
With radio, USB interface |
|
|
79 |
Special needs for electrical appliances 1 |
Engine compartment temperature alarm system |
|
|
80 |
Acoustic and thermal insulation of the engine compartment |
The engine compartment is insulated with heat and sound |
|
|
81 |
Step lights |
disposition |
|
|
82 |
Interior lights |
disposition |
|
|
83 |
horn |
disposition |
The chassis comes with it |
|
84 |
Wiring harnesses |
The wiring harness of the engine compartment is designed according to high temperature resistance, and the chassis plug-in should be waterproof |
The water depth is about 1 meter, and the chassis wiring harness chassis comes with it |
|
Seat configuration |
|||
|
85 |
The main driver's seat is made of fabric |
Heat-resistant leather |
|
|
86 |
Main driver's seat type |
Mechanical |
|
|
87 |
The driver's seat is adjusted |
Adjust up and down, back and forth |
|
|
88 |
Passenger seat |
Injection-molded seats |
|
|
89 |
Seat arrangement |
3+2 |
|
|
Interior |
|||
|
90 |
Instrument panel |
Polyurethane foam |
|
|
91 |
floor |
Bamboo vinyl flooring |
|
|
92 |
Floor leather |
Wear-resistant floor leather |
|
|
93 |
Top upholstery |
PVC air duct + PVC roof |
|
|
94 |
Sun blinds/visors |
Sun blinds |
|
|
95 |
curtain |
// |
|
|
96 |
Protective fences |
disposition |
|
|
97 |
Interior floor profiles |
Aluminum alloy |
|
|
98 |
Baggage hold status |
Unbaggage compartment (including rear baggage compartment) |
|
|
99 |
Interior mirrors |
disposition |
|
|
100 |
Fire extinguisher in the car |
4KG，2 |
|
|
Air conditioning system |
|||
|
101 |
air conditioning |
32000W Non-independent overhead air conditioner 32000W |
|
|
102 |
Defroster |
disposition |
|
|
other |
|||
|
103 |
Body color |
Domestic plain lacquer white |
|
